Series of Logic Analyzers
Product Selection of Logic Analyzer
Product Model LA1010 LA2016 LA5016 LA5032

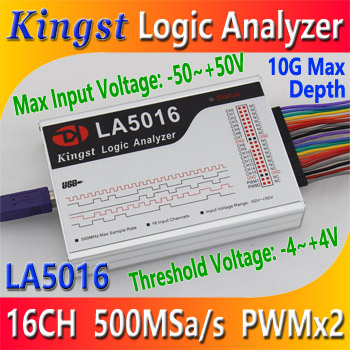

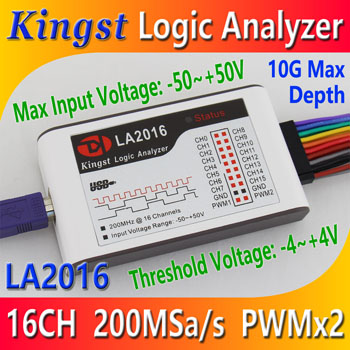

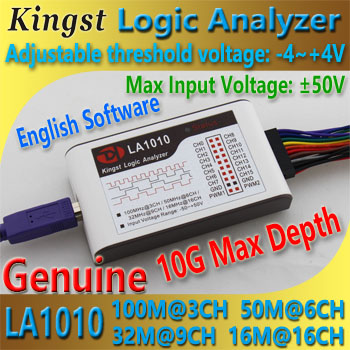

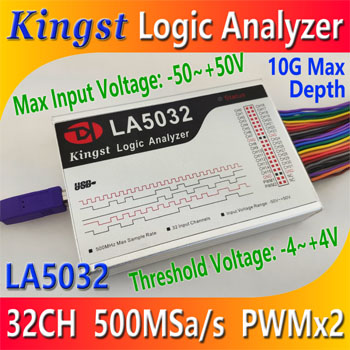

Product Photo LA1010 LA2016 LA5016 LA5032
Purchase Link
$68.00
$138.00
$238.00
$398.00
Channel Number 16 16 16 32
Max Sampling Rate 100M@3CH, 50M@6CH
32M@9CH, 16M@16CH
200M@16CH 500M@16CH 500M@32CH
Fastest Digital Signal 20MHz 40MHz 80MHz 80MHz
Min Pulse Width 20ns 12.5ns 6.25ns 6.25ns
Hardware Memory Size -- 1G bits 2G bits 4G bits
Hardware Sampling Depth
(can be ensured)
-- 50M Sas 100M Sas 100M Sas
Max Compression Depth
(can't be ensured)
10G Sas 10G Sas 10G Sas 10G Sas
Threshold Voltages -4V ~ +4V -4V ~ +4V -4V ~ +4V -4V ~ +4V
